Description

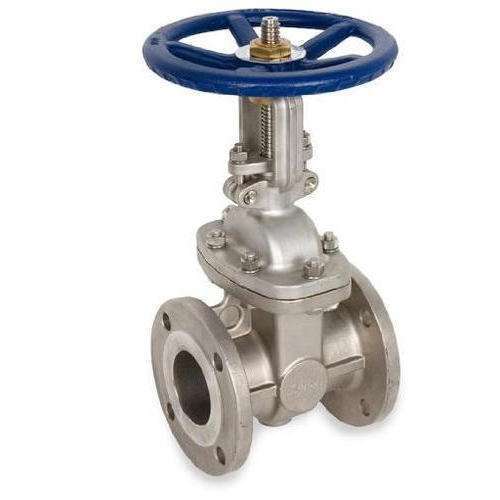

Zirconium Gate Valve
Body: Zirconium 702, Zirconium 705, Monel 400, Monel K500, Monel 600, Duplex, Super Duplex Stainless Steel
Disc: Zirconium 702, Zirconium 705, Monel 400, Monel K500, Monel 600,Duplex, Super Duplex Stainless Steel
Trim: SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite
Gland Packing: Graphite, PTFE
End Connections: Flanged, Socketweld, Buttweld
Operations: Handwheel Operated, Electric Actuated, Pneumatic Actuated
Nominal Size: DN50 to DN600
Nominal Pressure: PN 1.0 to 25 Mpa, Class 150 to 2500
Design and Manufacture Standard: ANSI B16.34, API 600, API 6D, API 603, BS1414
Face to Face Dimension: ANSI B16.10, API 6D
Flanged End Dimension: ANSI B16.5, MSS-SP-44 to API605
Butt welded End Dimension: ANSI B16.5
Inspection and Test: API 598, API 6D

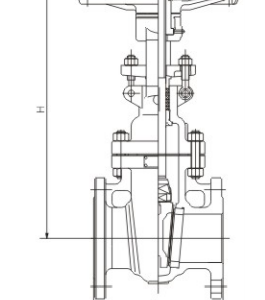

Dimensions? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Unit: mm
Class 150
| DN | L | L1 | L2 | H | W |
| 50 | 178 | 191 | 216 | 341 | 200 |
| 65 | 190 | 203 | 241 | 371 | 200 |
| 80 | 203 | 216 | 283 | 402 | 250 |
| 100 | 229 | 241 | 305 | 472 | 280 |
| 125 | 254 | 267 | 381 | 530 | 300 |
| 150 | 267 | 279 | 403 | 587 | 300 |
| 200 | 292 | 305 | 419 | 743 | 350 |
| 250 | 330 | 343 | 457 | 904 | 400 |
| 300 | 356 | 368 | 502 | 1047 | 450 |
| 350 | 381 | 394 | 572 | 1172 | 500 |
| 400 | 406 | 419 | 610 | 1297 | 600 |
| 450 | 432 | 445 | 660 | 1433 | 680 |
| 500 | 457 | 470 | 711 | 1590 | 750 |
| 600 | 508 | 521 | 813 | 1898 | 800 |
