Description
Twin Seal Plug Valve
Body: WCB, A105, LCB, LF2, WC6, F22, CF8, CF8M, F304, F316
Bonnet: WCB, A105, LCB, LF2, WC6, F22, CF8, CF8M, F304, F316
Plug: A105+ENP, Stainless Steel
Seat: PTFE
Seat Ring: PTFE
Packing: Graphite, PTFE
Gasket: Stainless Steel+Graphite
Bolts/Nut: B7/2H

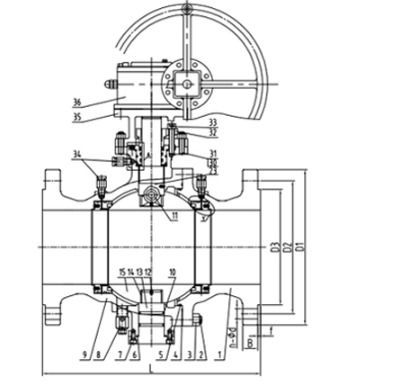

Dimensions
Size(inch) | L | D1 | D2 | D3 | B | f | n-Φd |
6 | 394 | 280 | 241.3 | 215.9 | 239 | 2 | 8-Φ22 |
8 | 457 | 345 | 298.5 | 269.9 | 27 | 2 | 8-Φ22 |
10 | 533 | 405 | 362 | 323.8 | 28.6 | 2 | 12-Φ25 |
12 | 670 | 485 | 431.8 | 381 | 30.2 | 2 | 12-Φ25 |
16 | 762 | 595 | 539.8 | 469.9 | 35 | 2 | 16-Φ29 |
20 | 914 | 700 | 635 | 584.7 | 413 | 2 | 20-Φ32 |
