Thermodynamic Steam trap
1. Body: Carbon Steel, Stainless Steel, Ductile Iron
2.Bonnet: Stainless Steel
3.Seat Plate: Stainless Steel
4.Cap: Stainless Steel
5.Valve: Stainless Steel
6.Filter: Stainless Steel
Nominal Diameter: DN15 to DN100
Nominal Pressure: Class 150 to Class300, PN10 to PN64
Dimensions Unit: mm

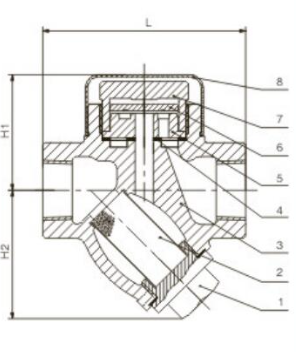

DN | L | H1 | H2 | W |
15 | 150 | 55 | 50 | 61 |
20 | 150 | 55 | 58 | 61 |
25 | 160 | 58 | 62 | 61 |
32 | 210 | 71 | 80 | 79 |
40 | 230 | 75 | 90 | 79 |
50 | 230 | 85 | 105 | 79 |
65 | 280 | 100 | 82 | 85 |
80 | 310 | 118 | 92 | 110 |
100 | 310 | 128 | 102 | 110 |
