Description
Slurry Knife Gate Valve
Body: Ductile Iron, Carbon Steel
Stem: F304, F316
Gate: F304, F316
Stem Packing: PTFE, Graphite
Nominal Diameter: DN50 to DN600
Nominal Pressure: Class150, PN6, PN10, PN16
End Connection: Wafer, Lug
Standard Compliance
MSS SP-81, T 8691
Face to Face Dimension: MSS SP-81
Pre-temperature Rating: ANSI B16.34
Flanged Dimension: ANSI B16.5, DIN2533, HG20592
Inspection and Test: API 598, T 9092
Dimensions Unit: mm

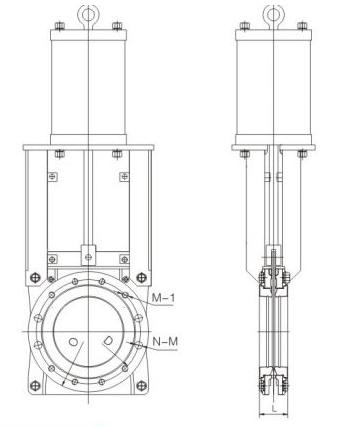

DN | L | O | D | M-1 |
50 | 54 | 165 | 125 | 4-M16 |
65 | 54 | 185 | 145 | 4-M16 |
80 | 57 | 200 | 160 | 4-M16 |
100 | 57.5 | 220 | 180 | 4-M16 |
125 | 59 | 250 | 210 | 4-M16 |
150 | 65 | 285 | 240 | 4-M20 |
200 | 77 | 340 | 295 | 4-M20 |
250 | 78 | 395 | 350 | 8-M20 |
300 | 83 | 445 | 400 | 8-M20 |
350 | 84 | 505 | 460 | 12-M20 |
400 | 92 | 565 | 515 | 12-M24 |
450 | 103 | 615 | 565 | 16-M24 |
500 | 121 | 670 | 625 | 16-M24 |
600 | 121 | 780 | 725 | 12-M27 |
