Description
Pneumatic Three Way Ball Valve
Body material: CF8M
Stem: SS304
Connection type: Screwed, Buttweld, Threaded or Welded
Nominal Diameter: DN15 to DN50
Nominal Pressure: PN1.6 to PN6.3MPa
Structure type: Floating ball core 3 way T type, 3 way L type
Stem material: 304

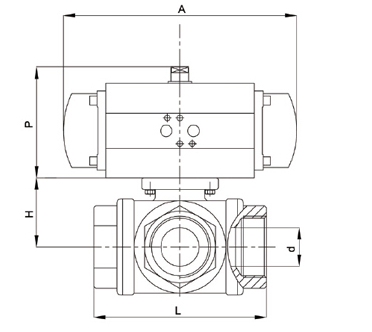

Dimensions Unit: mm
| DN | d | L | H | A | p |
| 15 | 11 | 79 | 42 | 115 | 158 |
| 20 | 15 | 88 | 49 | 115 | 158 |
| 25 | 20 | 108 | 60 | 137 | 177 |
| 32 | 25 | 124 | 63 | 137 | 177 |
| 40 | 32 | 135 | 74 | 147 | 196 |
| 50 | 40 | 164 | 83 | 165 | 226 |
