Description
Pneumatic Actuated 2 Piece Ball Valve
Nominal Size : DN10 to DN50
Body: Stainless Steel, Carbon Steel
Ball: Stainless Steel, Carbon Steel
Sealing Material: PTFE
End Connection: Threaded, Buttweld(BW), Socketweld, Flanged
Actuation Type: Spring Return, Double Acting

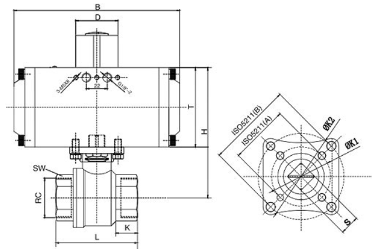

Dimensions Unit: mm
DN | L | K | SW | H | T | D | B |
10 | 55 | 12 | 16 | 104 | 65 | 150 | |
15 | 55 | 12 | 26 | 104 | 65 | 40 | 150 |
20 | 71 | 16 | 32 | 107 | 65 | 40 | 150 |
25 | 82 | 19 | 39 | 120 | 75 | 40 | 150 |
32 | 91 | 19 | 43 | 142 | 88 | 40 | 173 |
40 | 103 | 20 | 54 | 147 | 88 | 40 | 173 |
50 | 121 | 23 | 69 | 167 | 100 | 40 | 187 |
