Description

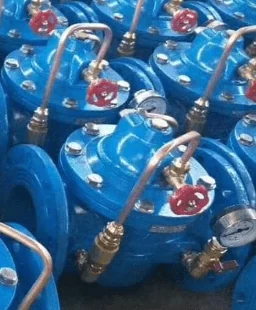

Pilot Operated Pressure Reducing Valve
Body: Ductile Iron, Carbon Steel, Stainless Steel
Seat: Stainless Steel
O-Ring: NBR
O-Ring: NBR
Bolt: Stainless Steel (A2-70, A4)
Bonnet: Iron, Stainless Steel
Plug: Stainless Steel
Bushing: Bronze
Spring: Stainless Steel
Nut: Stainless Steel (A2-70, A4)
Plate: Iron
Diaphragm: EPDM
Disc Holder: Iron
Seal: NBR
Seat Retainer: Stainless Steel
Stem: Stainless Steel
Nominal Diameter: DN50 to DN200
Nominal Pressure: PN16 to PN64, Class150 to Class2500
End Connection: Flanged

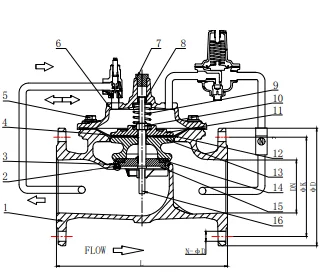

Dimension
PN16 Unit: mm
DN | L | фD | фK | N-фD |
50 | 230 | 165 | 125 | 4-ф19 |
65 | 290 | 185 | 145 | 4-ф19 |
80 | 310 | 200 | 160 | 8-ф19 |
100 | 350 | 235 | 190 | 8-ф19 |
125 | 400 | 270 | 220 | 8-ф23 |
150 | 480 | 300 | 250 | 8-ф23 |
200 | 600 | 360 | 310 | 12-ф23 |
