Orbit Plug Valve
Body: WCB, CF8, CF8M, CF3, CF3M, LCB, WC6
Bonnet: WCB, CF8, CF8M, CF3, CF3M, LCB, WC6
Plug: A105+ENP, SS304, SS304L, SS316, SS316L
Seat: PTFE, PPL
Seat Ring: PTFE, PPL
Packing: Graphite, PTFE, PPL
Gasket: SS304+Graphite
Nominal Size: DN15 to DN350
Nominal Pressure: Class150 to Class2500, PN16 to PN420
Design and Manufacture Standard: API 599, API 6D, ASME B16.34, BS 5353
Face to Face Dimension: ANSI B 16.10, API 6D, DIN3202, EN558-1, EN12982, ISO 5752
Flanged End Dimension: ANSI B 16.5, ASME B16.47; EN1092, DIN2543~DIN2547, AS2129
Screwed End Dimension: ANSI B1.20.1, BS21, JIS BO20
Inspection and Test: API598, API6D, DIN3230, EN12266, ISO 5208
Dimensions Unit: mm
Class150

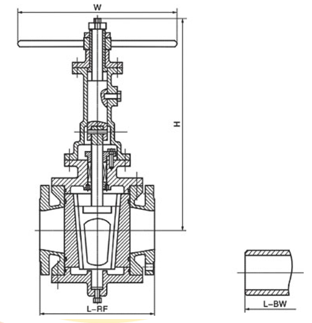

| DN | L-RF | L-BW | H | W |
| 15 | 108 | 152 | 230 | 120 |
| 20 | 117 | 178 | 260 | 140 |
| 25 | 127 | 203 | 300 | 140 |
| 32 | 140 | 216 | 340 | 180 |
| 40 | 165 | 229 | 380 | 200 |
| 50 | 178 | 267 | 435 | 220 |
| 65 | 190 | 305 | 460 | 260 |
| 80 | 203 | 330 | 490 | 280 |
| 100 | 229 | 356 | 525 | 300 |
| 125 | 254 | 381 | 570 | 340 |
| 150 | 267 | 394 | 625 | 400 |
| 200 | 292 | 457 | 700 | 450 |
| 250 | 330 | 533 | 780 | 450 |
| 300 | 305 | 610 | 870 | 500 |
| 350 | 381 | 686 | 980 | 500 |
