Description
Incoloy Globe Valve
Body: Incoloy 800, Incoloy 800H, Incoloy 825, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
Disc: Incoloy 800, Incoloy 800H, Incoloy 825, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
Trim: Incoloy 800, Incoloy 800H, Incoloy 825, SS304, SS316
Gland Packing: Graphite, PTFE
End Connections: Flanged
Operation: Handwheel Operated, Electric Actuated, Pneumatic Actuated
Nominal Size: DN50 to DN600
Nominal Pressure: PN1.0 to 25MPa, Class150 to Class2500
Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS 1414, BS 5352, DIN 3352
Face to Face Dimension: ANSI B16.10, API 6D, ASME B16.10, EN 558, DIN 3202
Flanged End Dimension: ANSI B16.5, MSS-SP-44 to API605
Butt welded End Dimension: ANSI B16.5
Inspection and Test: API 598, API 6D, DIN 3230

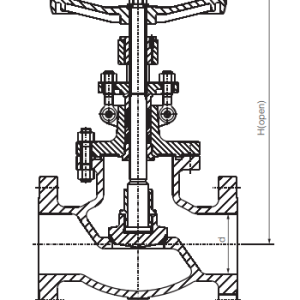

Dimensions Unit: mm
Class 150
| DN | L | d | H | H1 | W | W1 | ||
| RF | RTJ | BW | ||||||
| 50 | 203 | 216 | 203 | 51 | 330 | – | 200 | – |
| 65 | 216 | 229 | 216 | 64 | 360 | – | 250 | – |
| 80 | 241 | 254 | 241 | 76 | 390 | – | 280 | – |
| 100 | 292 | 305 | 292 | 102 | 445 | – | 300 | – |
| 125 | 356 | 369 | 356 | 127 | 480 | – | 350 | – |
| 150 | 406 | 419 | 406 | 152 | 520 | 556 | 350 | 310 |
| 200 | 495 | 508 | 495 | 203 | 600 | 658 | 400 | 310 |
| 250 | 622 | 635 | 622 | 254 | 773 | 805 | 450 | 460 |
| 300 | 698 | 711 | 698 | 305 | 880 | 955 | 500 | 460 |
| 350 | 787 | 800 | 787 | 337 | 950 | 1100 | 600 | 460 |
| 400 | 914 | 927 | 914 | 387 | 996 | 1175 | 600 | 460 |
| 500 | 978 | 991 | 978 | 488 | – | 1450 | – | 600 |
| 600 | 1295 | 1308 | 1295 | 590 | – | 1690 | – | 600 |
