Description

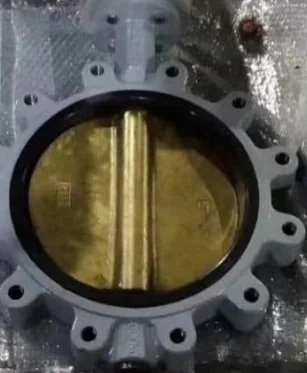

Hastelloy C276/B3 Lug Butterfly Valve
Body: Hastelloy, Ductile Iron, Cast Iron, Stainless Steel, Aluminium Bronze, Monel, Alloy Steel, Duplex Stainless
Steel
Disc: Hastelloy, Ductile Iron, Cast Iron, Stainless Steel, Aluminium Bronze, Monel, Alloy Steel, Duplex Stainless
Steel
Stem: Stainless Steel( SS304, SS316, SS416), Monel
Seat: NBR, EPDM, PTFE
Size: DN40 to DN300
Pressure: PN1.6 to PN4.0, Class 150 to Class 300

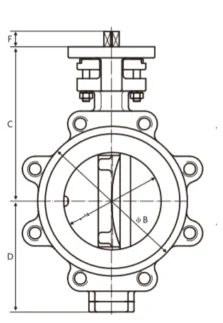

Dimensions Unit: mm
PN10
DN | фB | C | D | F |
50 | 102 | 140 | 98 | 16 |
65 | 122 | 152 | 106 | 16 |
80 | 133 | 165 | 113 | 16 |
100 | 156 | 185 | 130 | 20 |
125 | 188 | 205 | 147 | 20 |
150 | 216 | 223 | 161 | 22 |
200 | 268 | 268 | 203 | 25 |
250 | 323 | 323 | 235 | 28 |
300 | 336 | 336 | 268 | 32 |
350 | 415 | 415 | 312 | 38 |
