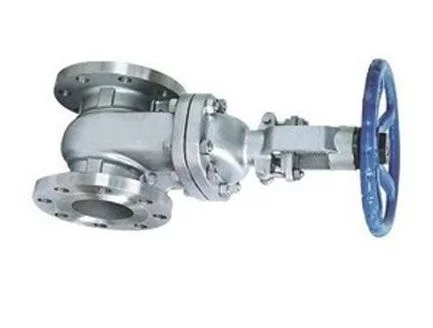

F317L Gate Valve

Description

F317L Gate Valve

Body: F317L,  Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9,  C5, C12, LCB, CF3M

Gate: F317L,  Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9,  C5, C12, LCB, CF3M

Trim: SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy, Alloy 20

Gland Packing: Graphite, PTFE

Nominal Size: DN15 to DN500

Nominal Pressure: Class150 to Class600

End Connections: Flanged, Socketweld, Buttweld

Operations: Handwheel Operated, Electric Actuated, Pneumatic Actuated

Design and Manufacture: ANSI B16.34, API 600, API 6D, API 603, BS1414

Face to Face Dimensions: ANSI B16.10, API 6D

Flanged End Dimension: ANSI B16.5, MSS-SP-44 to API605

Inspection and Test: API 598, API 6D

Dimensions                                                               Unit: mm
