Description

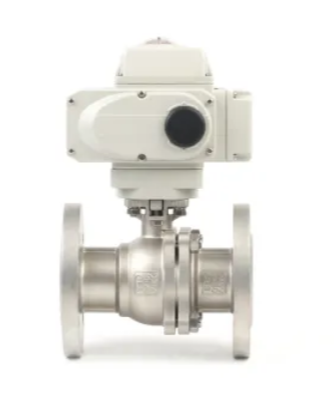

Electric Actuated Floating Ball Valve
Body: Carbon Steel, CF8M, CF8M
Bonnet: Carbon Steel, CF8M, CF8M
Ball: CF8, CF8M
Seat: PTFE
Packing: PTFE
Nominal Diameter: DN15 to DN250
Nominal Pressure: PN1.0 to PN6.4, Class150 to Class300
Actuation Type: Electric Actuated
Input and Output Signal: DC 4-30mA, DC 0-10V, DC 1-5V
Voltage: AC110-240V 380V 50/60Hz, DC 12V, DC 24V
Power Supply: 24V AC, 24V DC, 110V AC, 230V AC
Dimensions
PN16
Size | DN | L | D | D1 | D2 | b | Z-Φd | H | L0 |
1/2″ | 15 | 130 | 95 | 65 | 45 | 14 | 4-Φ14 | 78 | 140 |
3/4″ | 20 | 130 | 105 | 75 | 55 | 14 | 4-Φ14 | 84 | 160 |
1″ | 25 | 140 | 115 | 85 | 65 | 14 | 4-Φ14 | 95 | 180 |
1 1/4″ | 32 | 165 | 135 | 100 | 78 | 16 | 4-Φ18 | 150 | 250 |
1 1/2″ | 40 | 165 | 145 | 110 | 85 | 16 | 4-Φ18 | 150 | 300 |
2″ | 50 | 203 | 160 | 125 | 100 | 16 | 4-Φ18 | 170 | 350 |
2 1/2″ | 65 | 222 | 180 | 145 | 120 | 18 | 4-Φ18 | 195 | 350 |
3″ | 80 | 241 | 195 | 160 | 135 | 20 | 8-Φ18 | 215 | 400 |
4″ | 100 | 305 | 215 | 180 | 155 | 20 | 8-Φ18 | 250 | 500 |
5″ | 125 | 356 | 245 | 210 | 185 | 22 | 8-Φ18 | 265 | 600 |
6″ | 150 | 394 | 280 | 240 | 210 | 24 | 8-Φ18 | 270 | 800 |
8″ | 200 | 457 | 335 | 295 | 265 | 24 | 12-Φ25 | 330 | 800 |
10″ | 250 | 533 | 405 | 355 | 320 | 26 | 12-Φ25 | 450 | 1300 |
