Description
Connection Lift Plug Valve
Body: WCB, CF8, CF8M, CF3, CF3M, LCB, WC6
Bonnet: WCB, CF8, CF8M, CF3, CF3M, LCB, WC6
Plug: A105+ENP, SS304, SS304L, SS316, SS316L
Seat: PTFE, PPL
Seat Ring: PTFE, PPL
Packing: Graphite, PTFE, PPL
Gasket: SS304+Graphite
Nominal Size: DN15 to DN350
Nominal Pressure: Class150 to Class900, PN16 to PN63
Flanged Ends to ASME B16.5
Socket Weld Ends to ASME B16.11
Butt Weld Ends to ASME B16.25
Screwed Ends to ANSI, ASME B1.20.1

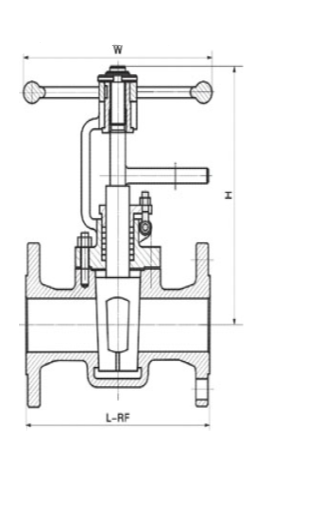

Dimensions Unit: mm
| DN | L-RF | L-BW | H | W |
| 15 | 108 | 152 | 190 | 120 |
| 20 | 117 | 178 | 195 | 140 |
| 25 | 127 | 203 | 225 | 140 |
| 32 | 140 | 216 | 260 | 180 |
| 40 | 165 | 229 | 280 | 200 |
| 50 | 178 | 267 | 310 | 220 |
| 65 | 190 | 305 | 340 | 260 |
| 80 | 203 | 330 | 395 | 280 |
| 100 | 220 | 356 | 435 | 300 |
| 125 | 254 | 381 | 470 | 340 |
| 150 | 267 | 394 | 535 | 400 |
| 200 | 292 | 457 | 590 | 450 |
| 250 | 330 | 533 | 630 | 450 |
| 300 | 356 | 610 | 680 | 500 |
| 350 | 381 | 686 | 720 | 500 |
