Description

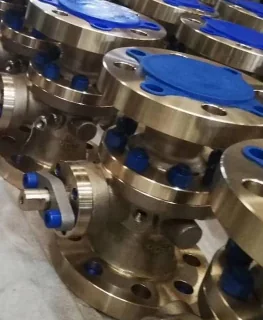

Casting Floating Ball Valve
Body: WCB, CF8, CF8M
Bonnet: WCB, CF8, CF8M
Ball: SS304, SS316
Stem: F6a, SS304, SS316
Seat: EPDM, Metal, Viton, PTFE, NBR
Nominal Size: DN15 to DN200
Nominal Pressure: PN10 to PN160, Class150 to Class2500
End Connection: RF, RTJ, BW
Operation: Handle, Gear Operated, Electric Actuated
Design and Manufacture: ASME B16.34, BS5351, API6D, API608
Face to Face Dimensions: ASME B16.10, API6D
Flange Connection: ASME B16.5
Buttweld Connection: ASME B16.25
Test and Inspection: API598, API6D
Dimension
PN16 Unit: mm
| DN | d | L | d1 | d2 | D | b | n-фd | H | W |
| 50 | 51 | 178 | 92 | 120.5 | 152 | 16 | 4-19 | 110 | 200 |
| 65 | 64 | 190 | 105 | 139.5 | 178 | 18 | 4-19 | 130 | 290 |
| 80 | 76 | 203 | 127 | 152.5 | 190 | 19 | 4-19 | 150 | 290 |
| 100 | 102 | 229 | 157 | 190.5 | 229 | 24 | 8-19 | 180 | 360 |
| 125 | 127 | 356 | 186 | 216 | 254 | 24 | 8-22 | 220 | 600 |
| 150 | 152 | 394 | 216 | 241.5 | 279 | 26 | 8-22 | 270 | 800 |
| 200 | 203 | 457 | 270 | 298.5 | 343 | 29 | 8-22 | 340 | 1000 |
| 250 | 254 | 533 | 324 | 362 | 406 | 31 | 12-25 | 350 | 1200 |
