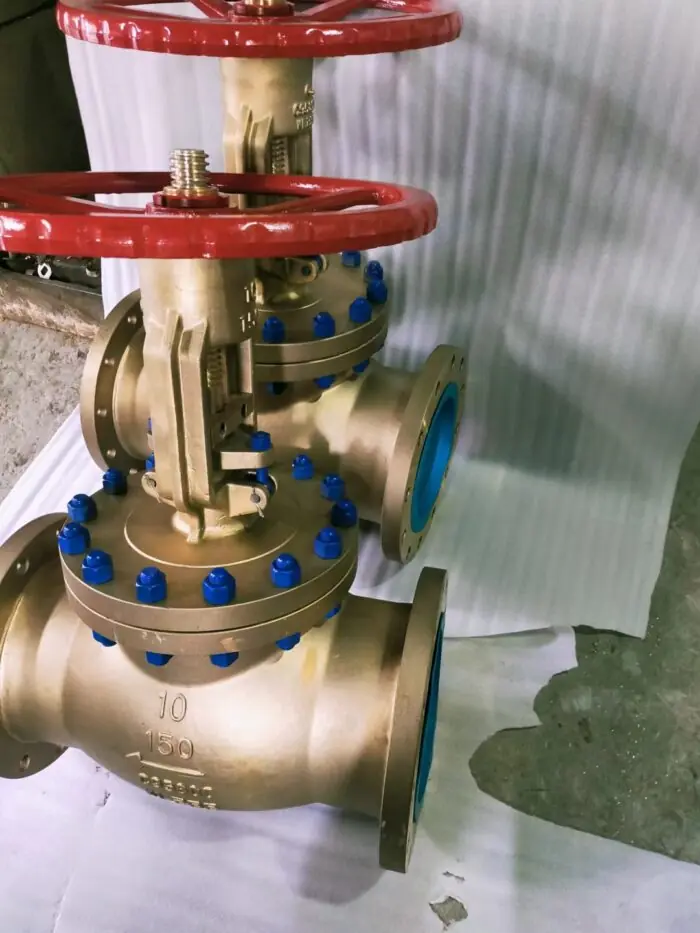

Aluminium Bronze Globe Valve
Body: Aluminium Bronze ASTM B148 C95800 , Duplex Stainless Steel, Super Duplex Stainless Steel, Alloy
20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
Bonnet: Aluminium Bronze ASTM B148 C95800, Monel Alloy 400, Duplex Stainless Steel, Super Duplex
Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
Disc: Aluminium Bronze ASTM B148 C95800, Monel Alloy 400, Duplex Stainless Steel, Super Duplex
Stainless Steel, Alloy 20, CN7M, Hastelloy, Carbon Steel, WC6, WC9, C5, C12, LCB, CF3M
Trim: Incoloy 800, Incoloy 800H, Incoloy 825, SS304, SS316, SS304L, SS316L, 13%Cr.Steel, Stellite, Hastelloy,
Alloy 20, Duplex Stainless Steel, Super Duplex Stainless Steel
Gland Packing: Graphite, PTFE
Nominal Size: DN15 to DN200
Nominal Pressure: PN10 to PN64, Class150 to Class2500
End Connections: Flanged, Socketweld, Buttweld
Actuation: Handwheel Operated, Electric Actuated, Pneumatic Actuated
Dimensions Unit: mm
Class150
| DN | L | H | D | D1 | D2 | b | n-фd | W |
| 15 | 108 | 169 | 90 | 60 | 35 | 12 | 4-15 | 125 |
| 20 | 117 | 180 | 98 | 70 | 43 | 12 | 4-15 | 125 |
| 25 | 127 | 190 | 108 | 79 | 51 | 12 | 4-15 | 125 |
| 40 | 165 | 347 | 127 | 98 | 73 | 14 | 4-16 | 180 |
| 50 | 203 | 356 | 152 | 120 | 92 | 15 | 4-19 | 180 |
| 65 | 216 | 381 | 178 | 139 | 105 | 17 | 4-19 | 240 |
| 80 | 241 | 413 | 190 | 152 | 127 | 19 | 4-19 | 280 |
| 100 | 292 | 500 | 229 | 190 | 157 | 24 | 8-19 | 280 |
| 150 | 406 | 656 | 279 | 241 | 216 | 25 | 8-22 | 360 |
| 200 | 495 | 660 | 343 | 298 | 270 | 29 | 8-22 | 450 |
