Description
Aluminium Bronze Dual Plate Check Valve
Body: Aluminium Bronze( C95800, C83600, C84400, B62)
Disc: Aluminium Bronze, SS304, SS316
Trim: Aluminium Bronze, SS304, SS316
Gland Packing: Graphite, PTFE
Nominal Size: DN50 to DN200
Nominal Pressure: PN10 to PN40, Class 150 to Class 2500

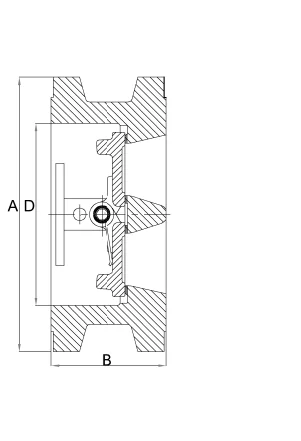

Dimensions Unit: mm
Class150
DN | A | B | D |
50 | 102 | 65 | 54 |
65 | 121 | 78 | 60 |
80 | 134 | 94 | 67 |
100 | 171 | 117 | 67 |
125 | 193 | 145 | 83 |
150 | 219 | 171 | 95 |
200 | 276 | 222 | 127 |
