Description

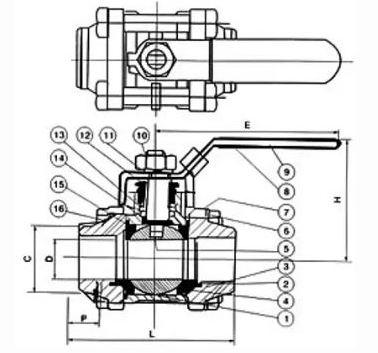

3 Piece Screwed Ball Valve
1. Body: Carbon Steel, Cast Iron, CF8, CF8M
2. Cap: Carbon Steel, Cast Iron, CF8, CF8M
3. Ball: Carbon Steel, Cast Iron, CF8, CF8M
4. Stem: SS304, SS316
5. Gland Nut: SS304
6. Seat: PTFE, RTFE
7. Seal: PTFE
8. Packing: PTFE
9. Thrust Washer: PTFE
10. Spring Washer: SS304
11. Stem Nut: SS304
12. Bolt: SS304
13. Nut: SS304
14. Spring Washer: SS304
15. Handle: Stainless Steel
16. Locking Device: Stainless Steel
17. Handle Sleeve: PVC
Full Port or Reduced Port
Investment cast stainless steel unibody
Blow-out proof stem, Double reduced port
Size: 1/4″ to 4″
Nominal Pressure: PN1.0 to PN2.5
Dimensions: Unit: mm
| SIZE | D | C | L | H | W |
| 1/4″ | 11.6 | 14 | 65 | 50 | 120 |
| 3/8″ | 12.7 | 17.5 | 65 | 50 | 120 |
| 1/2″ | 15 | 22.7 | 65 | 60 | 120 |
| 3/4″ | 20 | 27.5 | 75 | 64 | 130 |
| 1″ | 25 | 34 | 85 | 71 | 154 |
| 1-1/4″ | 32 | 42 | 100 | 79 | 154 |
| 1-1/2″ | 38 | 49 | 125 | 86 | 185 |
| 2″ | 50.8 | 60.5 | 150 | 95 | 185 |
| 2-1/2″ | 65 | 76.5 | 190 | 130 | 250 |
| 3″ | 80 | 90 | 210 | 142 | 250 |
| 4″ | 100 | 108 | 268 | 170 | 280 |
