Description
2 Piece Flanged Ball Valve
Design & manufacture: EN12516, DIN3357
Face to Face: DIN 3202, EN558-1, DN15 to DN100 (F4,F14), DN125 to DN250 (F5,F15)
Flange End: EN1092-2, ISO7005-2
Nominal Pressure: PN16, PN25, PN40, PN63
Pressure testing: EN1266, ISO 5208, DIN 3230
Nominal Size: DN15 to DN250
Body: Cast Iron, Cast Steel, CF8, CF8M
Ball: SS304, SS316
Seat: PTFE, RPTFE
Gasket: PTFE, RPTFE
Bolt: Stainless Steel
Nut: Stainless Steel
Stem: SS304, SS316
Handle: Stainless Steel

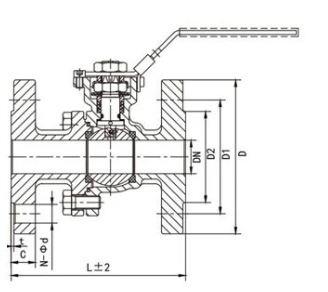

Dimensions:
Inches | mm | L | D | D1 | D2 | t | C | N-Φd |
½” | DN15 | 108 | 90 | 60.5 | 35 | 2 | 10 | 4-Φ16 |
¾” | DN20 | 117 | 100 | 70 | 43 | 2 | 11 | 4-Φ16 |
1” | DN25 | 127 | 110 | 79.5 | 51 | 2 | 12 | 4-Φ16 |
1-1/4” | DN32 | 140 | 115 | 89 | 63.5 | 2 | 13 | 4-Φ16 |
1-1/2” | DN40 | 165 | 125 | 98.5 | 73 | 2 | 15 | 4-Φ16 |
2” | DN50 | 178 | 150 | 120.5 | 92 | 2 | 16 | 4-Φ19 |
2-1/2” | DN65 | 190 | 180 | 140 | 105 | 2 | 18 | 4-Φ19 |
3” | DN80 | 203 | 190 | 152.5 | 127 | 2 | 19 | 4-Φ19 |
4” | DN100 | 229 | 230 | 190.5 | 157 | 2 | 24 | 8-Φ19 |
5” | DN125 | 356 | 255 | 216 | 186 | 2 | 24 | 8-Φ22 |
6” | DN150 | 394 | 280 | 241.5 | 216 | 2 | 26 | 8-Φ22 |
8” | DN200 | 457 | 345 | 298.5 | 267 | 2 | 29 | 8-Φ22 |
10” | DN250 | 533 | 405 | 362 | 324 | 2 | 31 | 12-Φ25 |
