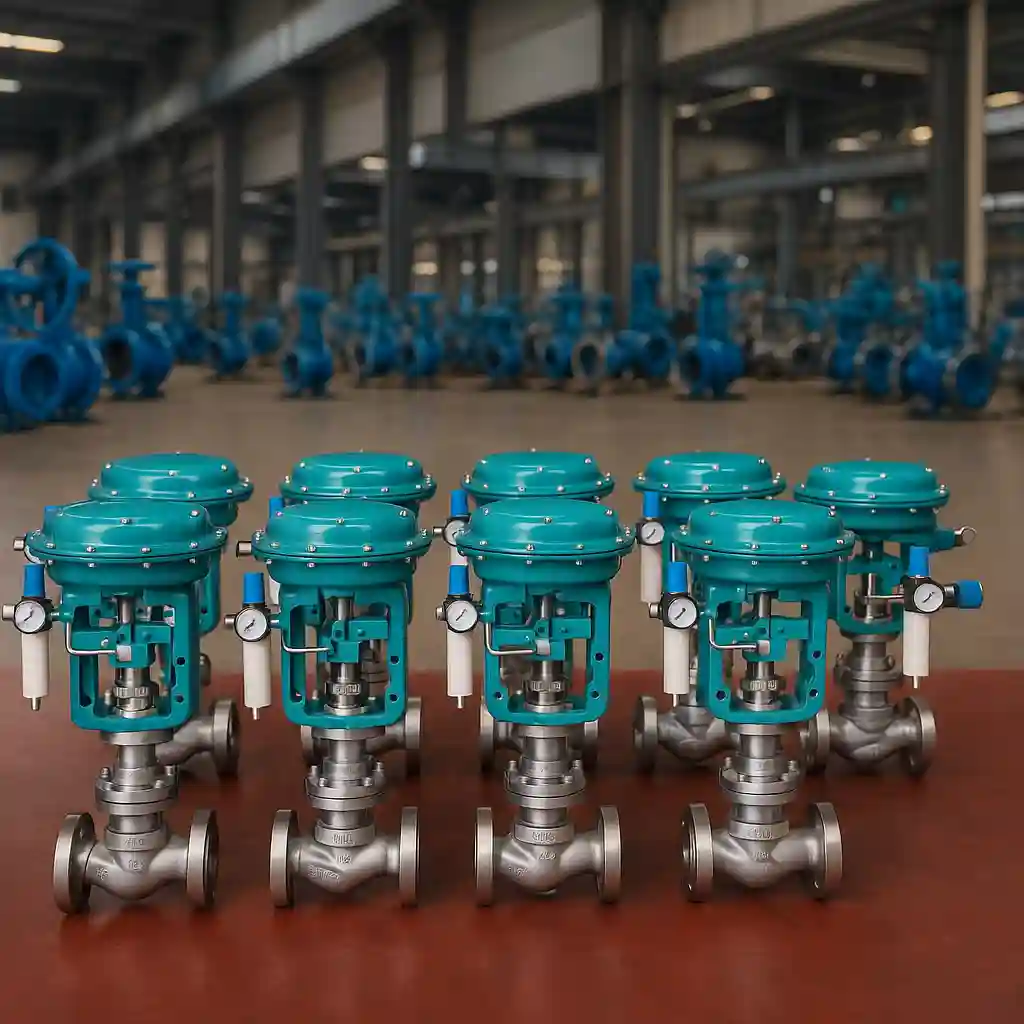

Pneumatic Control Valve

Pneumatic control valve manufacturer in USA

SVR Global manufactures pneumatic control valves engineered for precise flow, pressure, and temperature regulation across chemical processing, power generation, oil & gas, and water treatment systems. Each valve is built to convert an instrument air signal into accurate, repeatable stem movement for continuous process control across USA.

What is a Pneumatic Control Valve?

Pneumatic control valves are control elements used in regulating fluid flow inside a process system by controlling the opening of a valve through pressure control signals. Control valves differ from on/off valves in that control valves control fluid flow by modulating their opening from fully open to fully shut, while on/off valves either fully open or shut.

Types of Pneumatic Control Valve:

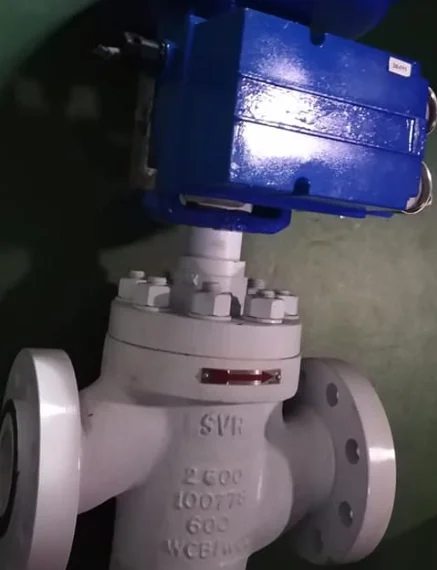

• 3 Way Converging/Diverging Control Valve - Combines or splits flow between two paths for blending or diverting streams.

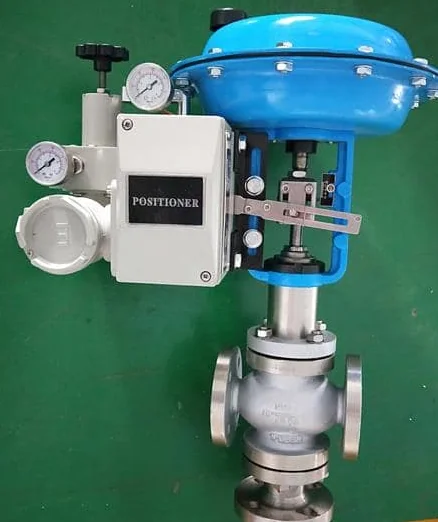

• 3 Way Pneumatic Diaphragm Control Valve - Diaphragm actuated three way control for mixing or bypass with corrosive/solid bearing fluids.

• Fluorine Lined Single Seat Control Valve - Fluoropolymer lined trim for corrosive fluid resistance.

• Pneumatic Actuated Globe Type Control Valve - Linear stem motion for precise throttling and tight shutoff.

• Pneumatic Angle Control Valve - 90-degree body reduces erosion and cavitation at high pressure drops.

• Pneumatic Cage Control Valve - Cage style trim for noise reduction and stability at high pressure drops.

• Pneumatic Double Seat Control Valve - Balanced two-seat design lowers actuator thrust needs for larger valves.

• Pneumatic Flow Control Valve - Maintains consistent flow rate regardless of upstream pressure variation.

• Pneumatic Single Seat Globe Control Valve - Single seat design for tighter shutoff, minimal leakage.

• Pneumatic Sleeve Type Control Valve - Flexible sleeve for smooth throttling, low noise, suited to slurry/particulate fluids.

How Pneumatic Actuation Controls Valve Movement?

The instrument air is provided in a controlled pressure to act on the diaphragm/piston located inside the actuator. The actuator will move the valve stem depending upon the change in air pressure, causing movement of the plug/ball relative to the seat inside the valve.

Components of a Pneumatic Control Valve System:

A fully functional system consists of the valve body, actuator, positioner, I/P converter, and air supply regulation components that work together to convert the control signal into physical motion.

How Does a Pneumatic Control Valve Work?

1)Air Supply and Signal Conversion (I/P Converter)

An I/P (current-to-pneumatic) converter transforms a 4-20mA electrical control signal from a process controller into a proportional pneumatic signal (typically 3-15 PSI), which is then applied to the actuator.

2)Positioner Function in Precision Control

Essentially, what the positioner does is that it checks whether the position of the stem is equal to the position it must be in, according to the control signal, and then makes adjustments to the supply of air to the actuator, until they become equal. Thus, there is feedback, which results in correction of the deviation from the required position.

3)Fail Safe Action Fail Open vs Fail Close

In the event of air supply loss, spring return actuators drive the valve to a predetermined safe position. Fail close valves shut off flow to protect downstream equipment, while fail open valves maintain flow where stoppage would create a hazard, such as in cooling or venting lines.

Materials Used in Pneumatic Control Valve Manufacturing:

Body Materials:

• Carbon Steel - general process applications, moderate temperature and pressure

• Stainless Steel (304, 316, 316L) - corrosion resistance for chemical and high-purity applications

• Alloy Steel (WC6, WC9) - elevated temperature and pressure service, common in power generation

• Cast Iron - low pressure, non corrosive fluid applications

• Duplex/Super Duplex Stainless Steel - high chloride or aggressive corrosive environments

Trim Materials:

• Stainless Steel (410, 316) - standard trim for wear and corrosion resistance

• Stellite-Faced Trim - hardened surfacing for high erosion or high pressure drop service

• Hardened Alloy Trim - cavitation and erosion resistance in severe service conditions

• Fluoropolymer-Lined Trim (PTFE/PFA) - chemical resistance for highly corrosive fluids

Seat and Seal Materials:

• PTFE (Teflon) - chemical resistance and low friction for tight shutoff

• Metal Seats - high temperature service beyond soft-seat limits

• Reinforced PTFE / Graphite-Filled PTFE - added durability under thermal cycling

• Viton/FKM - elastomer seals for moderate chemical and temperature resistance

• Kalrez - extreme chemical and high temperature seal applications
